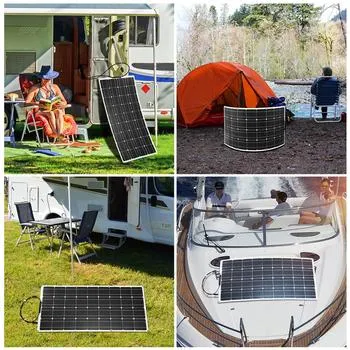

The internal structure of flexible solar panels is relatively fragile, so long-term outdoor use is not recommended. Suitable for camping and travel, because of lightweight. Solar panels can be stored when they are not working.
Model:16VDFSP-100M
Maximum Power(Pmax): 100W
Maximum Power Voltage(Vmp):16.00V
Maximum Power Current (Imp):6.25A
Open-Circuit Voltage (Voc): 20.00V
Short-Circuit Current (Isc):6.5A
Maximum System Voltage: DC1000V
Maximum Series Fuse:15A
Nominal Operating Cell Temp.(NOCT):-45 to 80℃
Weight: 1.KG
Dimensions:1055*540mm
For field connections,use minimun No.12AWG copper wires insulated for a minimum 90℃
Standard Test Conditions:
AM=1.5 IRRADIANCE=1000W/m2 Temp.=25℃
